Description:

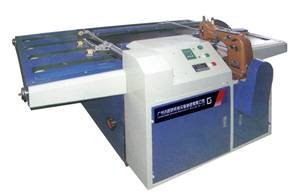

The woven bag sewing machine is suitable for the PP bag or new long bag production. This machine can hem the bottom and top of the bag. We mainly offer two types, the CMG-SXF type is automatic bag-sewing machine with up and down ports sewing, and the CMG-FB type is electric bag-sewing machine.
Main parameters of CMG-SXF Automatic Bag-sewing machine Up and Down Ports:
| Seam speed(pcs/min) | 30-40 |
| Power(kw) | 1.1-2.2 |
| Overall dimensions(mm) | 2200×1100×1000 |
Main parameters of CMG-FB Electric Bag-sewing machine:
| Type | CMG-FB-1 | CMG-FB-2 | CMG-FB-3 |
| Max.sewing speed(r/min) | 1400 | 1400 | 1400 |
| Thread chain type Chain | Single thread | Double thread | Double thread |
| Length of thread (mm) | 10-18 | 9-16 | 9-14 |
| Max.sewing thickness(mm) | 8 | 8 | 8 |
| Power of motor (kw) | 0.55 | 0.55 | 0.55 |
| Applied range | PP woven sack | PP woven sack | Container bag |
